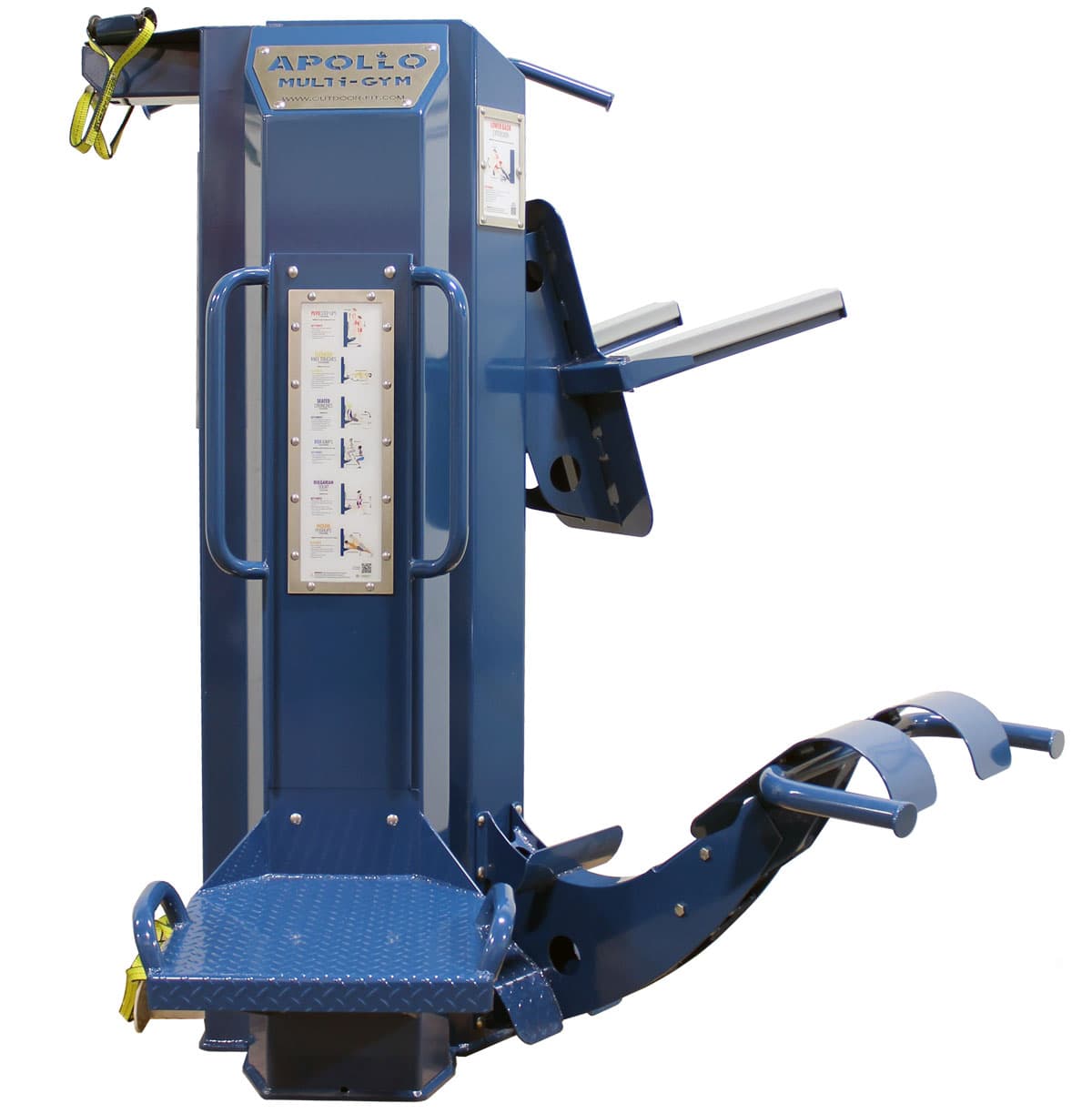

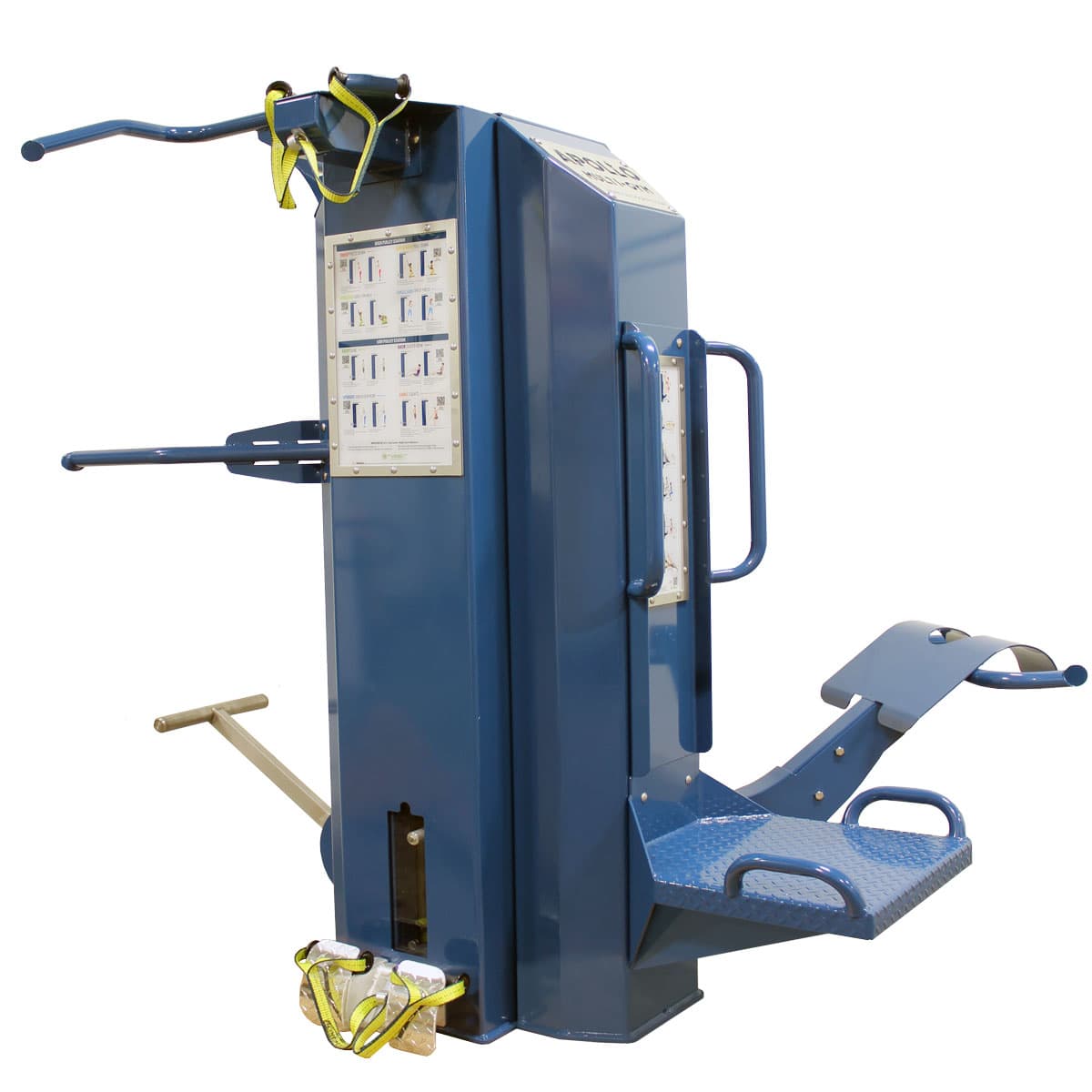

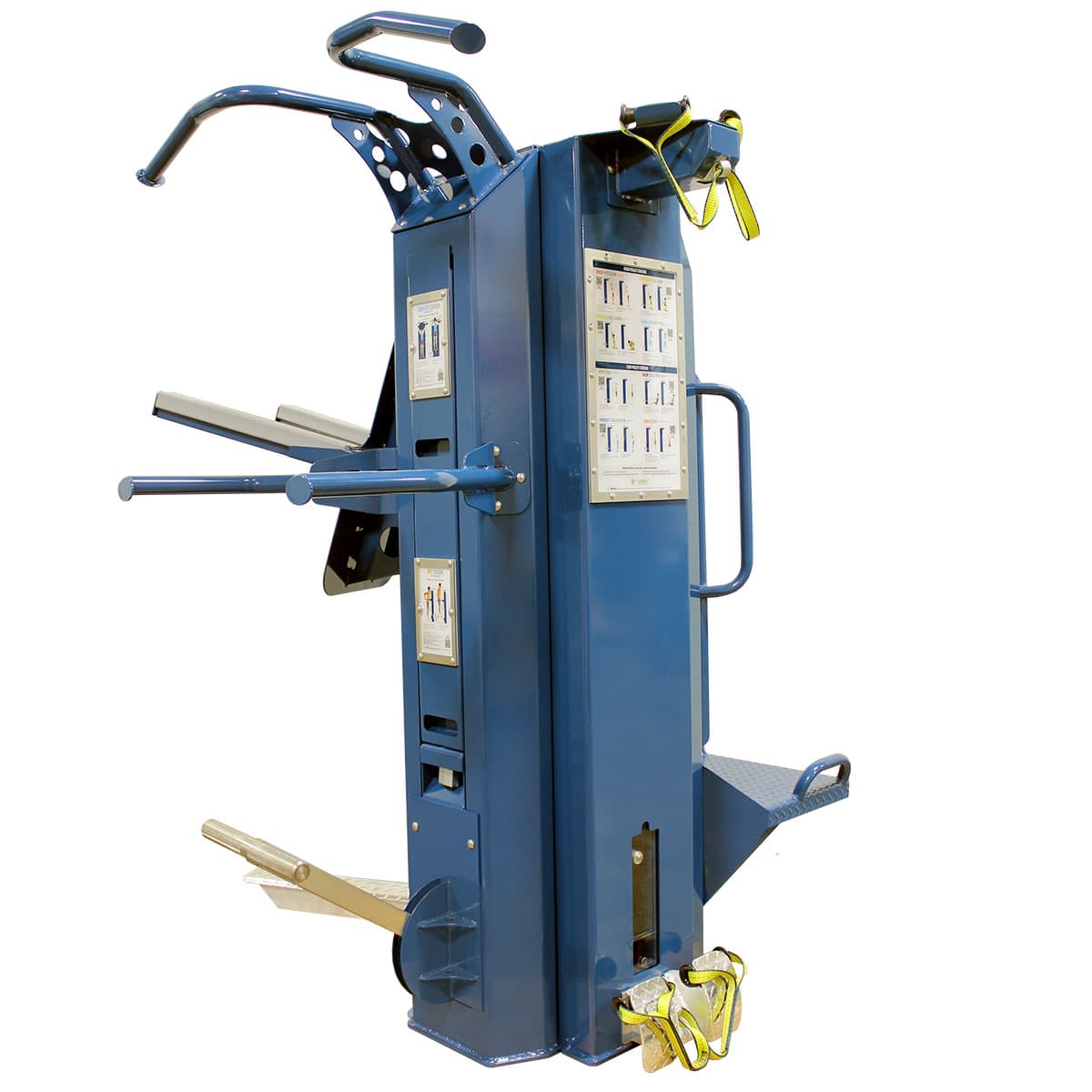

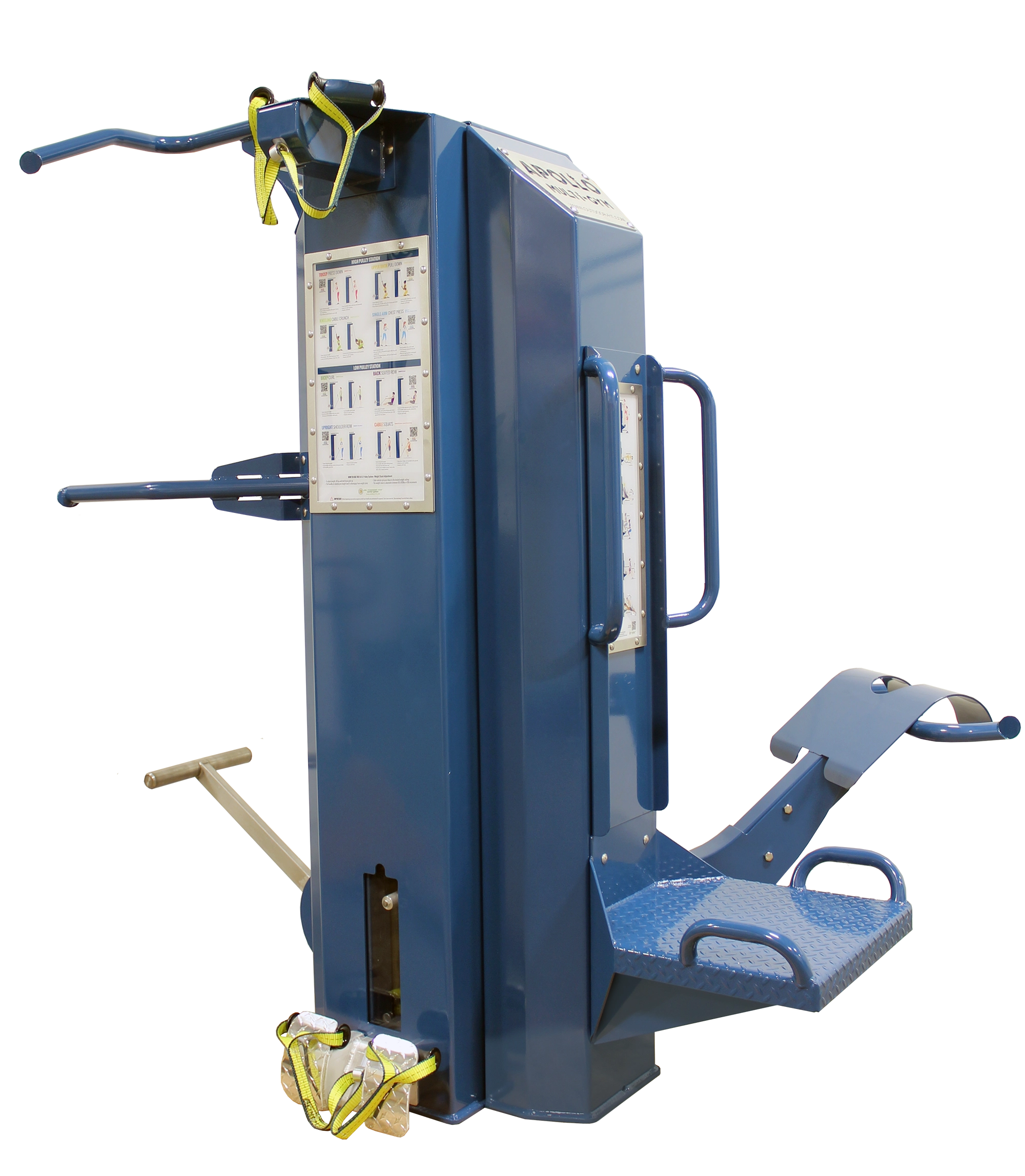

The Apollo Multigym brings your favorite indoor fitness stations to the outdoor world with the same exercise biomechanics and functionality you would expect to see indoors. The Apollo features four bodyweight stations, plus our unique Hi-Lo Pulley Station that can accommodate seniors, and folks of all fitness levels.

APOLLO Multigym

The Apollo Multigym brings your favorite indoor fitness stations to the outdoor world with the same exercise biomechanics and functionality you would expect to see indoors. The Apollo features four bodyweight stations, plus our unique Hi-Lo Pulley Station that can accommodate seniors, and folks of all fitness levels.

ASTM-COMPLIANT WEIGHT STACK SYSTEM

The high and low pulley station features a 100 lbs adjustable weight stack allowing users to adjust the weight between 10 and 100 lbs. Our unique locking safety mechanism eliminates pinch points, crush zones, and entrapment areas, creating an ASTM-compliant exercise station.

19+ DIFFERENT EXERCISES

The Apollo offers more than 19 different exercises spread across the five stations, offering a perfect mix of resistance, bodyweight, and functional exercises that deliver a total body workout.

INSTRUCTIONAL PLACARDS

The full-color instructional placards provide detailed instructions about how to perform the exercises, as well as fitness programming that is accessible by scanning a QR code with your mobile device.

Specifications

Compact, cost effective, and completely safe, the APOLLO Multigym is designed for any fitness level or ability.

Product Details

The APOLLO is built to maximize indoor or outdoor exercise areas, with over 19 exercises available.

Key Features

Five (5) users
Five (5) stations
19+ full-body exercises
Weatherproof and tamperproof
15-year warranty

Technical Specifications

Width: 73” / 185 cm

Length: 76” / 193 cm

Height: 85” / 216 cm

Use Zone: 13’10” x 12’6”

Weight: 1046 lbs / 475 kg

Fall Height: 84” / 213cm

Weight Stack Weight: 100 lbs / 45 kg

Shipping Weight: 1176 lbs / 534 kg

Shipping Dimensions: 48” wide x 72” long x 85” high / 122 cm wide x 183 cm long x 216 cm high

Instructional Placards: Reverse print with UV-stabilized ink on 1/4” thick Lexan. Bolted to the columns with a stainless steel trim ring using stainless steel carriage bolts.

Frame: Constructed of 3/16” and 1/4” thick heavy-duty steel. All fasteners are tamperproof stainless steel carriage bolts with a smooth, rounded head and square neck. The locking nuts are shielded behind a padlocked access hatch.

Finish:

All parts have surfaces prepped and cleaned of all mill scale, rust, oils, and dirt using shot blast and/or chemical wash.
Primer coat is applied with epoxy zinc-rich primer (3-4 mil thickness) and cured in oven.
Primer designed for superior rust protection. Tested for 3000 hours of salt spray resistance.
Top finish coat is applied with TGIC-FREE weather-resistant polyester powder (3-4 mil thickness) and cured in oven.
Tested for 1500 hours of salt spray resistance.
All parts inspected to be free of paint defects prior to shipping.

Accessibility: It is the manufacturers’ opinion that the Apollo Multigym conforms to the A.D.A. Accessibility standard, assuming an accessible protective surfacing is provided, or within the entire use zone.

Stations

High Low Pulley System

100 lbs weight stack with stainless selector pin that travels within a contained security track
Adjustable weight stack in 10 lbs increments
1/2” thick Lexan gate covering weight stack
Locking lever activates to prevent pinch points and crush zones
Instructional placard with graphics and QR codes for fitness programming and how-to videos

Exercises available:

Tricep Press Down
Upper Back Pull Down
Kneeling Cable Crunch
Single Arm Chest Press
Bicep Curl
Back Seated Row
Upright Shoulder Row
Cable Squat
+ More

16” Plyo Platform

Steel non-slip diamond treadplate
Integrated horizontal and vertical support handles made of 1” thick tubing
Instructional placard with graphics and QR codes for fitness programming and how-to videos

Exercises available:

Plyo Step Ups
Elevated Knee Touches
Seated Crunches
Box Jumps
Bulgarian Squat
Incline Push-ups
+ More

Vertical Abdominal Knee Raise

Back pad is angled properly and ergonomically
Rubber forearm pads
Instructional placard with graphics and QR codes for fitness programming and how-to videos

Exercises available:

Straight Leg Raise
Bent Leg Raise

Adjustable Back Extension Bench

Adjusts at four different points for people of different heights
Instructional placard with graphics and QR codes for fitness programming and how-to videos

Exercises available:

Lower Back Extension

Calf Raise

Square aluminum non-slip treadplate
Instructional placard with graphics and QR codes for fitness programming and how-to videos

Exercises available:

Single-leg calf raises
Double-leg calf raises

Chin-Up & Dip Bars with Assist Mechanism

Adjustable stainless steel assist lever that removes between 60 & 120 lbs of the user’s body weight.
Four (4) assist settings: 60lbs – 80lbs – 100lbs - 120lbs
Instructional placard with graphics and QR codes for fitness programming and how-to videos

Exercises available:
