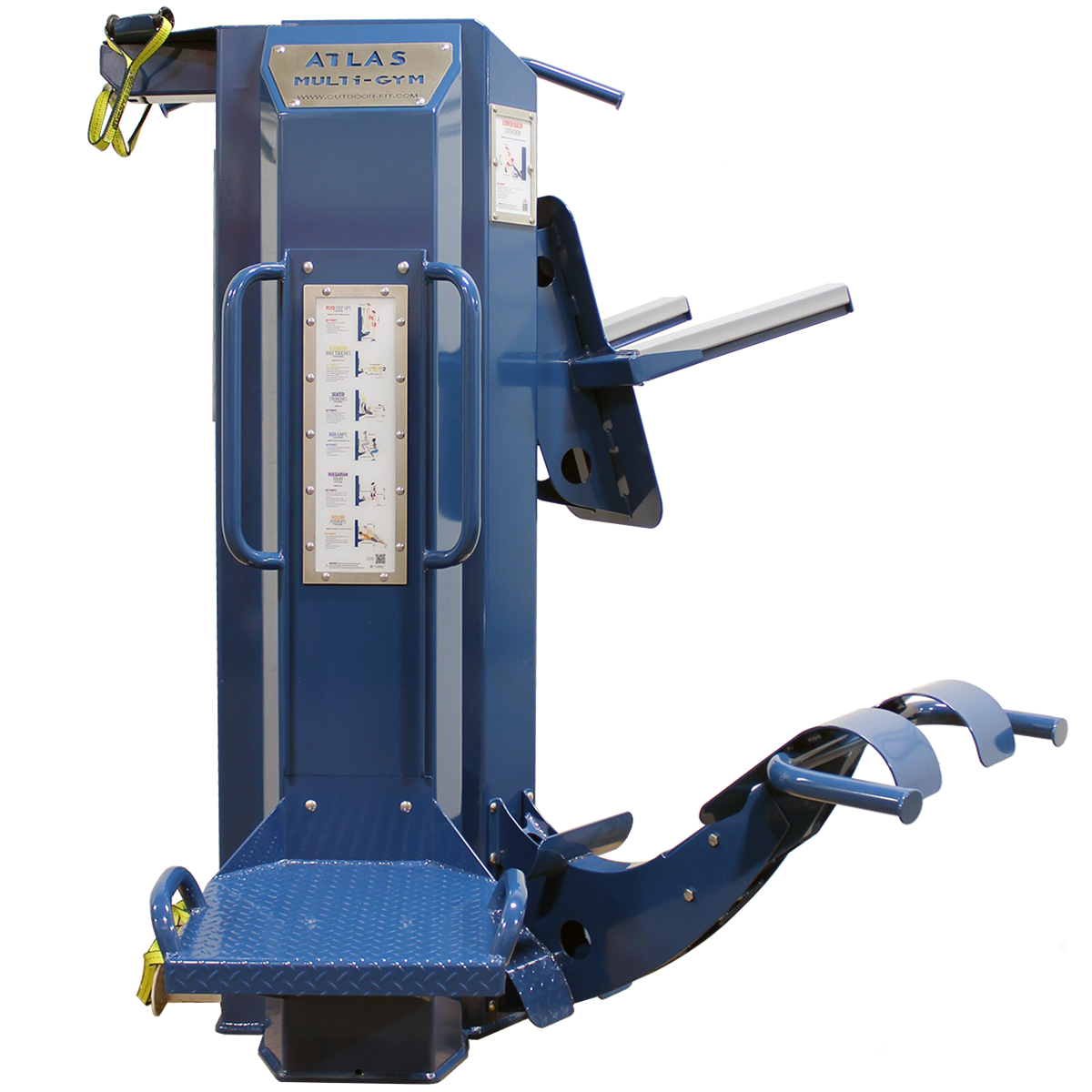

ATLAS Multigym

The ATLAS is built to maximize indoor or outdoor exercise areas, with over 50 exercises available.

KEY FEATURES

• Five (5) users
• Five (5) stations
• 50+ full-body exercises
• Weatherproof and tamperproof
• 15-year warranty

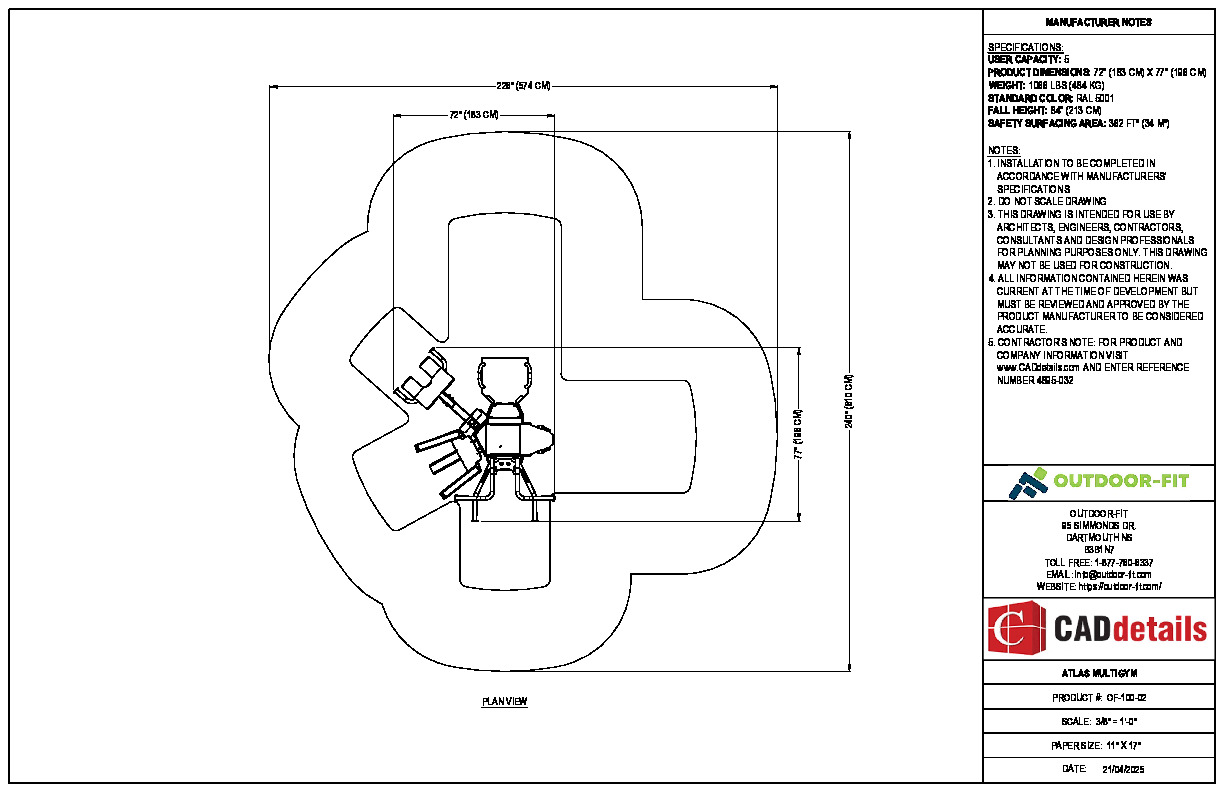

Width:   73” / 185 cm

Length: 76” / 193 cm

Height:  85” / 216 cm

Use Zone: 13’10” x 12’6”

Weight: 846 lbs / 383 kg

Fall Height: 84” / 213cm

Weight Stack Weight: 100 lbs / 45 kg

Shipping Weight: 1006 lbs / 456 kg

Shipping Dimensions: 44” wide x 76” long x 85” high / 112 cm wide x 193 cm long x 216 cm high

Instructional Placards: Reverse print with UV-stabilized ink on 1/4” thick Lexan. Bolted to the columns with a stainless steel trim ring using stainless steel carriage bolts.

Frame: Constructed of 3/16” and 1/4” thick heavy-duty steel. All fasteners are tamperproof stainless steel carriage bolts with a smooth, rounded head and square neck. The locking nuts are shielded behind a padlocked access hatch.

Finish:

• All parts have surfaces prepped and cleaned of all mill scale, rust, oils, and dirt using shot blast and/or chemical wash.
• Primer coat is applied with epoxy zinc-rich primer (3-4 mil thickness) and cured in oven.
• Primer designed for superior rust protection. Tested for 3000 hours of salt spray resistance.
• Top finish coat is applied with TGIC-FREE weather-resistant polyester powder (3-4 mil thickness) and cured in oven.
• Tested for 1500 hours of salt spray resistance.
• All parts inspected to be free of paint defects prior to shipping.

Accessibility: It is the manufacturers’ opinion that the ATLAS Multigym conforms to the A.D.A. accessibility standard, assuming an accessible protective surfacing is provided, or within the entire use zone.

High Low Pulley System

• 100 lbs weight stack with stainless selector pin that travels within a contained security track
• Adjustable weight stack in 10 lbs increments
• 1/2” thick Lexan gate covering weight stack
• Locking lever activates to prevent pinch points and crush zones
• Instructional placard with graphics and QR codes for fitness programming and how-to videos

Exercises available:

1. Tricep Press Down
2. Upper Back Pull Down
3. Kneeling Cable Crunch
4. Single Arm Chest Press
5. Bicep Curl
6. Back Seated Row
7. Upright Shoulder Row
8. Cable Squat
9. + More

16” Plyo Platform

• Steel non-slip diamond treadplate
• Integrated horizontal and vertical support handles made of 1” thick tubing
• Instructional placard with graphics and QR codes for fitness programming and how-to videos

Exercises available:

1. Plyo Step Ups
2. Elevated Knee Touches
3. Seated Crunches
4. Box Jumps
5. Bulgarian Squat
6. Incline Push-ups
7. + More

Vertical Abdominal Knee Raise

• Back pad is angled properly and ergonomically
• Rubber forearm pads
• Instructional placard with graphics and QR codes for fitness programming and how-to videos
• Exercises available:
• Straight Leg Raise
• Bent Leg Raise
• Adjustable Back Extension Bench
• Adjusts at four different points for people of different heights
• Instructional placard with graphics and QR codes for fitness programming and how-to videos

Exercises available:

• Lower Back Extension

Calf Raise

• Square aluminum non-slip treadplate
• Instructional placard with graphics and QR codes for fitness programming and how-to videos

Exercises available:

1. Single-leg calf raises
2. Double-leg calf raises

Chin-Up & Dip Bars

• Solid steel assist lip to provide assistance
• Instructional placard with graphics and QR codes for fitness programming and how-to videos

Exercises available:

1. Wide Grip Chin-up (with or without assist)
2. Narrow Grip Chin-up (with or without assist)
3. Hammer Grip Chin-up (with or without assist)
4. Dips (with or without assist)
