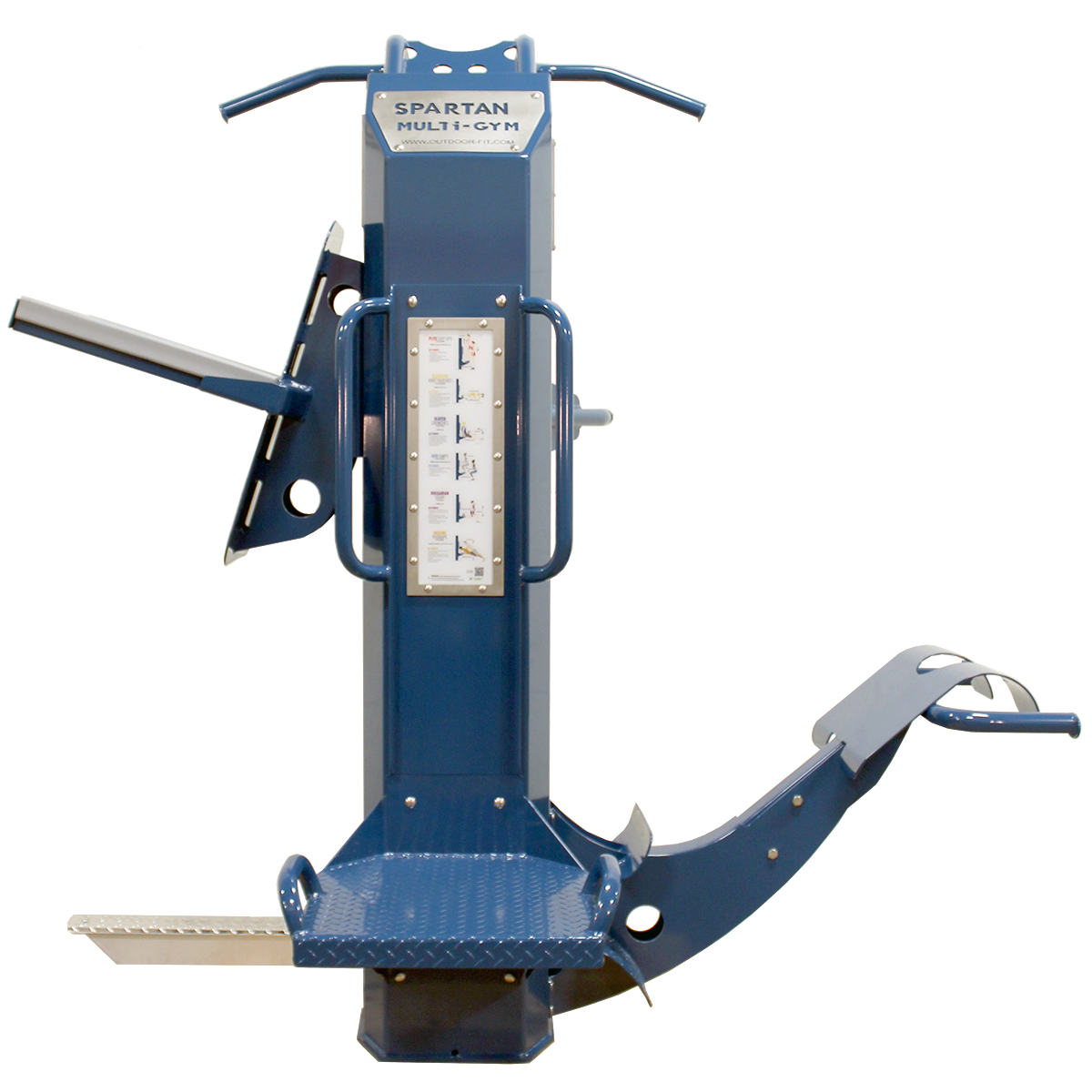

SPARTAN Multigym

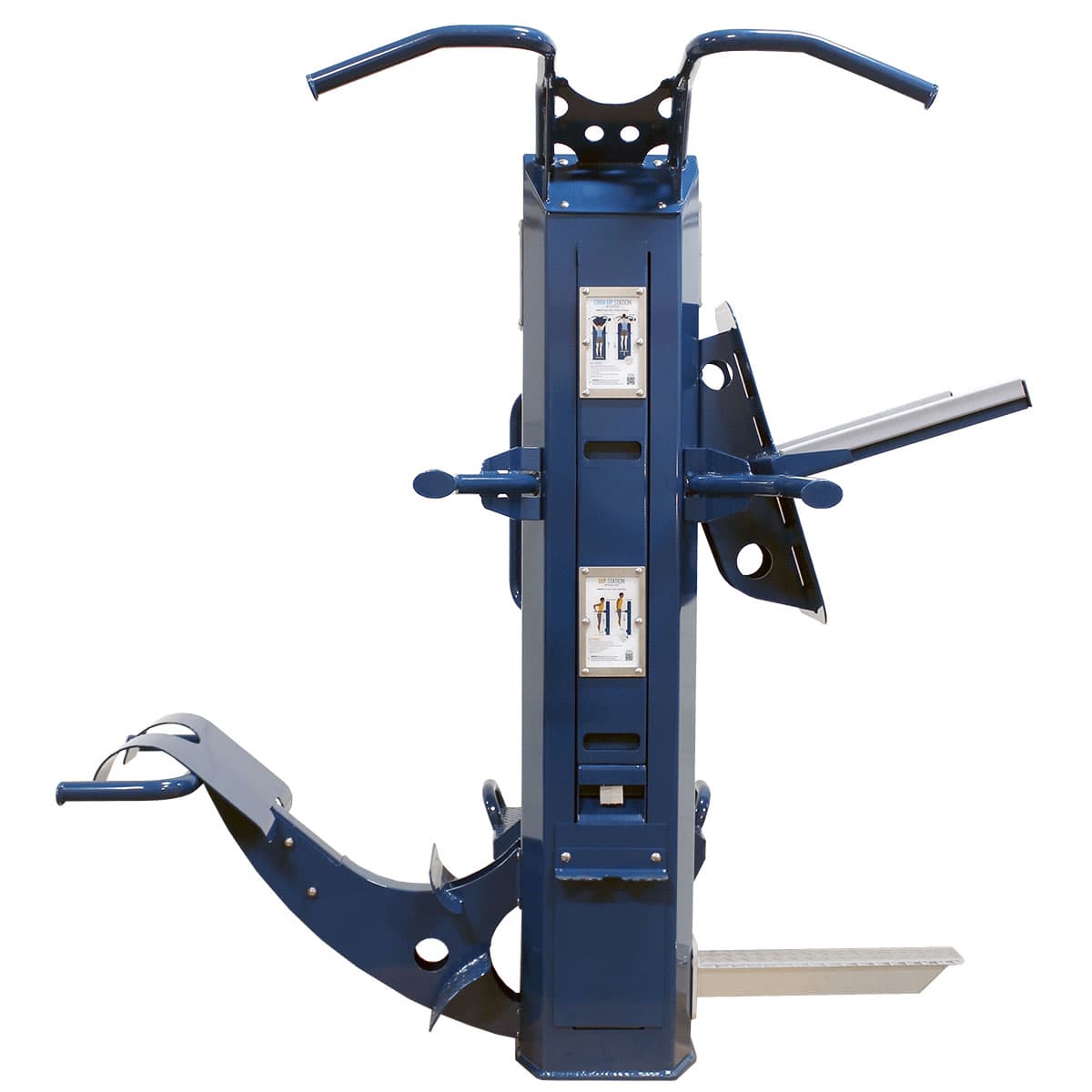

The SPARTAN Multigym is the original Helios but without moving parts. We have removed the chin/dip assist mechanism and replaced it with a static assist lip. The SPARTAN is the product for you if you want all the exercise options and benefits of the Helios without the moving parts.

NO MOVING PARTS

The SPARTAN has absolutely no moving parts. It offers the same exercises as the HELIOS Multigym without the assist mechanism. In its place is a fixed “assist lip” to still assist users with their chin-ups and dips.

FULL BODY WORKOUT

With functional and bodyweight stations, the SPARTAN offers more than 32 exercises to challenge your upper, lower, and abdominal muscles.

15-YEAR WARRANTY

The SPARTAN is super durable and can withstand any climate and environment. Customers choose the SPARTAN because of its easy installation, zero maintenance requirements, and a 15-year warranty.

Specifications

Compact, cost effective, and completely safe, the SPARTAN Multigym is designed for any fitness level or ability.

Product Details

The SPARTAN is built to maximize indoor or outdoor exercise areas, with 32 exercises available.

Key Features

Four (4) users
Four (4) stations
32+ different full-body exercises
Weatherproof and tamperproof
15-year warranty
No moving parts

Technical Specifications

Width: 80” / 204 cm

Length: 65” / 166 cm

Height: 85” / 216 cm

Weight: 620 lbs / 282 kg

Fall Height: 84” / 213cm

Use Zone: 12’8” x 11’9”

Shipping Weight: 585 lbs / 265 kg

Shipping Dimensions: 44” wide x 45” long x 85” high / 112 cm wide x 122 cm long x 216 cm high

Instructional Placards: Reverse print with UV-stabilized ink on 1/4” thick Lexan. Bolted to the columns with a stainless steel trim ring using stainless steel carriage bolts.

Frame: Constructed of 3/16” and 1/4” thick heavy-duty steel. All fasteners are tamperproof stainless steel carriage bolts with a smooth, rounded head and square neck. The locking nuts are shielded behind a padlocked access hatch.

Finish:

All parts have surfaces prepped and cleaned of all mill scale, rust, oils, and dirt using shot blast and/or
chemical wash.
Primer coat is applied with epoxy zinc-rich primer (3-4 mil thickness) and cured in oven.
Primer designed for superior rust protection. Tested for 3000 hours of salt spray resistance.
Top finish coat is applied with TGIC-FREE weather-resistant polyester powder (3-4 mil thickness) and
cured in oven.
Tested for 1500 hours of salt spray resistance.
All parts inspected to be free of paint defects prior to shipping.

Accessibility: It is the manufacturers’ opinion that the SPARTAN Multigym conforms to the A.D.A. accessibility standard, assuming an accessible protective surfacing is provided or within the entire use zone.

Stations

16” Plyo Platform

Steel non-slip diamond treadplate
Integrated horizontal and vertical support handles made of 1” thick tubing
Instructional placard with graphics and QR codes for fitness programming and how-to videos

Exercises available:

Plyo Step Ups
Elevated Knee Touches
Seated Crunches
Box Jumps
Bulgarian Squat
Incline Push-ups
+ More

Vertical Abdominal Knee Raise

Back pad is angled properly and ergonomically
Rubber forearm pads
Instructional placard with graphics and QR codes for fitness programming and how-to videos

Exercises available:

Straight Leg Raise
Bent Leg Raise

Adjustable Back Extension Bench

Adjusts at four different points for people of different heights
Instructional placard with graphics and QR codes for fitness programming and how-to videos

Exercises available:
