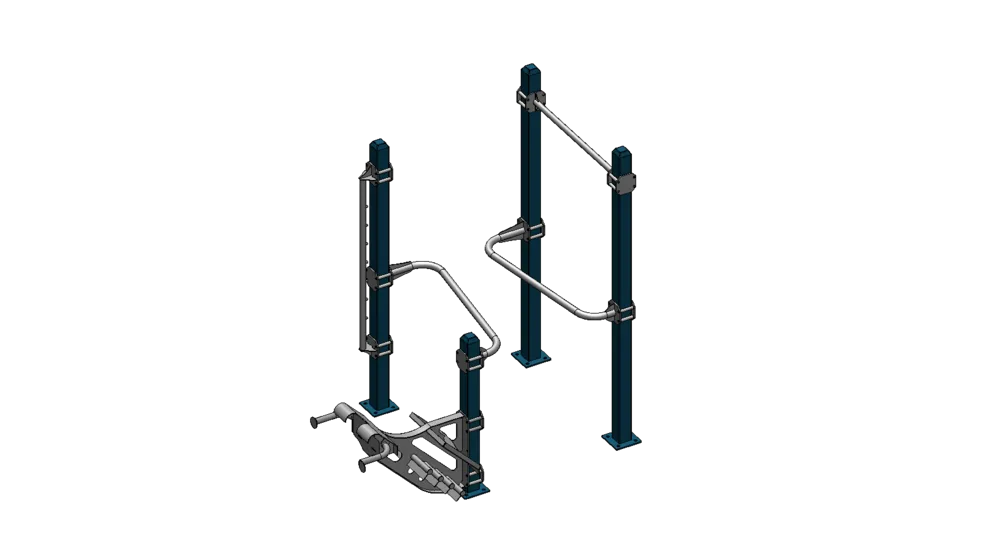

Cali-Rig 29 outdoor calisthenics equipment installed in a public park

Cali-Rig 29
Calisthenics Workout Equipment

A four post exercise system. Its stations include a stretching post, lower back extension bench, 42” parallel bars and an 84” straight pull-up bar.

4
User Capacity
4
Number of Stations
#
21
Number of Exercises
ASTM Compliant Icon
ASTM Compliant
no moving parts icon
No Moving Parts

Product Specifications

Product number: OF-900-29

Age: 13+

User capacity: 4

Number of stations: 4

Station List:

  • Band Stretching Post
  • Lower Back Extension Bench
  • Parallel Bar
  • Straight Pull-Up Bar

Colour options:

  • RAL 5001
  • RAL 1003
  • RAL 2011
  • RAL 5004
  • RAL 5015
  • RAL 6005
  • RAL 6018
  • RAL 7006
  • RAL 8017
  • RAL 9005
  • Silver Sandtex

Weight: 553 lbs (251 kg)

L x W x H:: 92.935 in x 66 in x 94 in
237 cm x 168 cm x 239 cm)

Hardware: 15-years

Powder coated steel parts: 15-years

Structural stainless steel and aluminum parts: 15-years

ASTM Fall Height: 84 in (34 cm)

Use Zone: 14 ft x 12 ft (5 m x 4 m)

ASTM Pad Size: 20 ft x 18 ft (6 m x 6 m)

ASTM Safety Surfacing Area: 267 ft2 (25 m2)

Cali-Rig 29 Plan View DXF
Plan Views
Cali-Rig 29 Plan View DWG
Plan Views
Cali-Rig 29 Tech Specs
Tech Specs
Cali-Rig 29 Info Sheet
Info Sheets
Outdoor-Fit Warranty
Warranty
